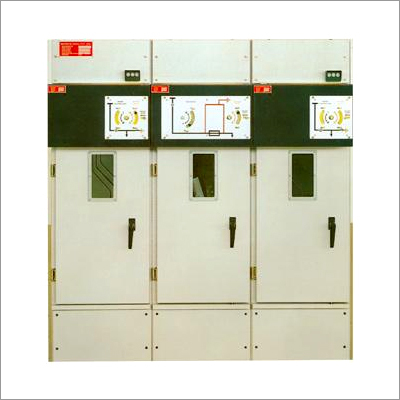

Ring Main Unit

Ring Main Unit
Ring Main Unit
Product Code : I-04
Brand Name : Isotech
Product Description

Ring Man Unit:

Ring Main Unit manufacturer in gurgaon, Ring Main Unit supplier in haryana

The Metal enclosed M.V. Ring main Unit TPM Type is fully SF6 insulated at pressure of 125 K Pa at 20oC and it is realized in a compact metal enclosed structure having bolted gas-tight side plate.
The R.M.U. Complying to the IEC 60694, 60298, 60265-1, 60420, 60129 standards.

Specification :

Rated Voltage

Kv

12

15-17.5

24

36

Power frequency apply voltage for 1 min

Kv

28

38

50

70

Lighting impulse test voltage

Kv

75

95

125

170

"Incoming Line"

Rated current

A

400
630

400
630

400
630

400
630

Rated short time current

KA x 1s
KA x 3s

16-20-25
16-20

16-20-25
16-20

16-20-25
16-20

16-20-25
16-20

Rated Making current on line switch and earthing switch

Kv

40-50-62.5

40-50-62.5

40-50-62.5

40-50-62.5

"Transformers outlet"

Rated Current

A

200

200

200

200

Rated making current main switch

kA

62,5

62,5

62,5

62,5

Rated making current earthing switch

kA

10

10

10

10
